The electric chain hoist model CPV combines modern design and technical innovation. A robust construction makes the series a versatile tool for professional applications. The integrated limit switch for the...
The electric chain hoist model CPV combines modern design and technical innovation. A robust construction makes the series a versatile tool for professional applications. The integrated limit switch for the...
WEIGHT:
0.0 kg
This is a special order item. Contact our team for a delivery estimate.
- Description
- Downloads
- Shipping
- YALE
Description

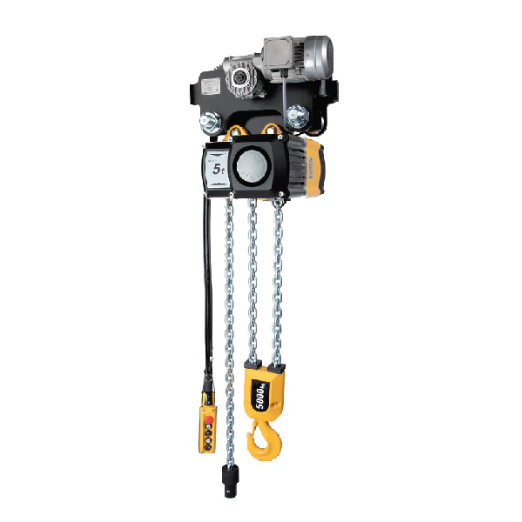

The electric chain hoist model CPV combines modern design and technical innovation. A robust construction makes the series a versatile tool for professional applications. The integrated limit switch for the highest and lowest hook position considerably extends the working life span of the slip clutch, motor and gearbox.
- Classification 1Am/M4. For 1-phase hoists: 1Bm/M3. As required (with appropriate changes to lifting capacity resp, duty cycle) the model CPV can also be reclassified up to 3m/M6
- Increased operating safety through 42 V control voltage (low voltage control), push-button pendant control, IP 65
- Duty cycle 50% ED for single speed
- Electromagnetic spring pressure brake holds the load safely even in the event of power failure
- Standard operating voltage: Euro-voltage 400 V, 3-phase, 50 Hz
- Motor protected to IP 55 (acc. to VDE 0530), against ingress of dust and water jets
- The externally adjustable slip clutch is designed to guarantee a permanent connection between the load and the brake
- The standard, oil bath lubricated and case hardened gearbox has a helical gearing for particularly smooth running and enhanced lifetime, greased gearbox by CPV/F 2-8
- Suspension lug for compact dimensions and easy integration in closed-eye constructions
- Steel chain guide, model CPV/F 2-8 comes with chain guides made of POM
- 2 year warranty (excluding wear parts) and a lifetime lubricated gearbox
Downloads
More information on this product can be found below. If you can't find what you need, drop us a DM or visit the manufacturer's website.
LG SPECIFICATIONS YALE CPV HOIST
Shipping
This is a Special Order item
This item may come from a supplier, or we may need to order it in. Our special-orders team will confirm the estimated delivery time and costs with you by email.
Domestic Shipping
Our products ship Australia wide and we’ll do everything possible to get your order to you quickly. Items are shipped from our warehouse in Sydney, New South Wales.
International Shipping
We can ship anywhere in the world and regularly deliver products to New Zealand and the Pacific Islands. However, due to the size and weight of lifting equipment the shipping costs to some countries may not be viable. Contact our team for a shipping quote on international orders.
Dispatch Times
As soon as you place your order, we will begin to process it straight away. The estimated dispatch times are listed clearly in the product description. If you need something urgently, contact our team and we will do whatever we can to help you out.
Delivery Partners
When you get to the checkout you can choose a delivery method that suits you. Shipping times and costs vary. Express Shipping is available.
Order Tracking
Once your order has been picked, packed and despatched you will be notified via email. You will also receive tracking advice and delivery confirmation by email.
YALE
YALE offers a comprehensive range of hoists: lever hoists, manual chain hoists, trolleys and grapples, electric and pneumatic chain hoists, manual winches, electric and pneumatic winches and rack and pinion winches.
YALE is a reliable brand with a worldwide reputation in all areas of industry and commerce, determined to find the right solution for lifting and handling loads.
