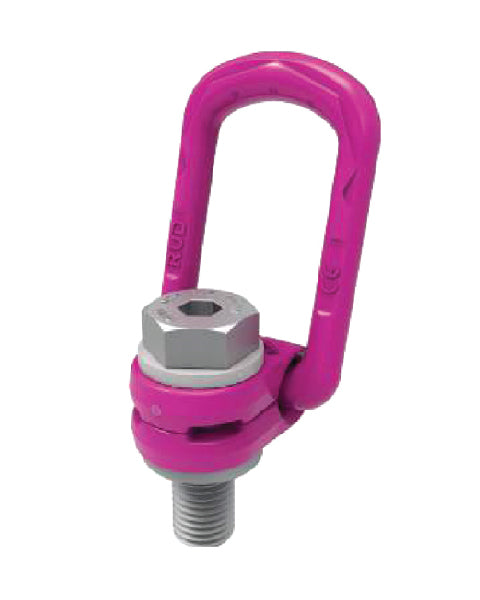

RUD SWIVEL LOAD RING (VLBG PLUS) RUD SWIVEL LOAD RING (VLBG PLUS)

VLBG load rings are commonly referred to as pinkies in the offshore Oil and Gas industry and Mining Industries. Load ring is stowable and swivels in all directions. Lifting point pivots 360° and the suspension ring pivots 180°. Optimal WLL with captive but exchangeable ICE-Bolt made out of patented steel with corrosion protection Corrud-DT. Non hazardous deep temperature down to -60; higher toughness and therefore higher bending strength as well as less wear occurrence.

PRODUCT FEATURES:

• Clamping spring works as a noise reduction and holds the suspension ring in the requested position; therefore simple hinge of lifting mean possible respectively flat design if turned down

• Clear marking of minimum WLL for all loading directions

• Available as Standard Metric Thread (DIN EN 13)

• Variable bolt lengths available for tapped or through holes

• Quick and easy installation with just one bolt connection

• Assembly with flat / ring wrench or allen key possible

• Hand tightening with appropriate wrench is sufficient for a singular lift

• Observe torque instructions when lifting point is permanently installed resp. at constant swiveling operations and tilting/turning actions

• Test certificates supplied

More information on this product can be found below. If you can't find what you need, drop us a DM or visit the manufacturer's website.

LG PRODUCT SPECIFICATIONS SWIVEL LOAD RING (VLBG PLUS)
